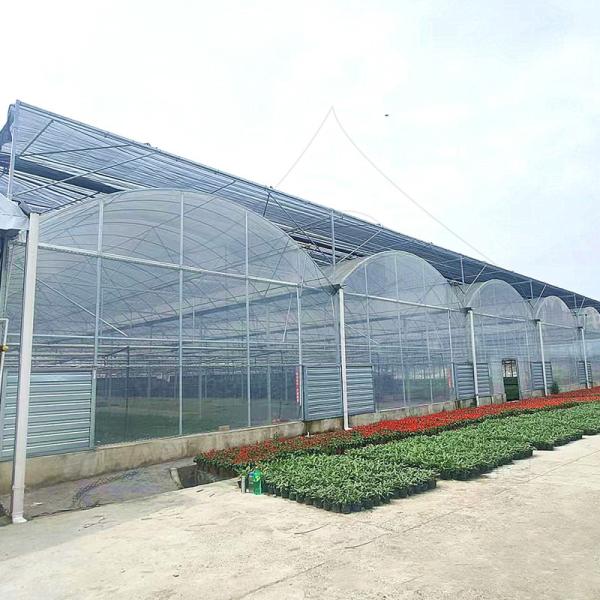

    Multi-span Agricultural Plastic Film Vegetable Fruit Tunnel Greenhouse

    Ask Lasest Price
    Brand Name : Aixiang Greenhouse
    Model Number : Multi-span
    Price : USD12.9-24.8 per square meters
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 20000acres per month
    Delivery Time : 20-25 work days
    • Product Details
    • Company Profile

    Multi-span Agricultural Plastic Film Vegetable Fruit Tunnel Greenhouse

    Multi-span Agricultural Plastic Film Vegetable Fruit Tunnel Greenhouse For Sale

    The main structure of plastic greenhouses is generally made of hot-dip galvanized steel pipes as the main load-bearing structure, produced in factories and installed on site. Due to the light weight of the plastic greenhouse itself and its weak resistance to wind and snow loads, full consideration should be given to the overall stability of the structure. Generally, vertical slant support should be set in the second span or the second bay indoors, and necessary spatial support should also be considered in the greenhouse's outer protective structure and roof. It is best to have diagonal braces (diagonal braces) anchored to the foundation to form a spatial force system. The main structure of a plastic greenhouse should have a wind resistance of at least level 8, and generally requires a wind resistance of level 10. The snow load bearing capacity of the main structure should be determined based on the actual snowfall conditions in the construction area and the winter usage of the greenhouse. For use in the north, the designed snow load should not be less than 0.35kN/m2. For plastic greenhouses that operate on an annual basis, multiple load factors such as equipment weight, plant lifting weight, and maintenance should also be considered.



    No.ItemsDescriptionIncluding Or Not
    1Steel StructureHot-galvanized steel pipeYes
    2Greenhouse filmThere's a lot of thickness to choose from.choose according to
    the clients requirements
    3Insect netHigh quality polyrthylene as raw materialchoose according to
    the clients requirements
    4Sun-shading netSummer shade,block rain,moisture,cooling,winter spring heat preservationchoose according to
    the clients requirements
    5cooling systemIt consists of cooling fans and cooling padchoose according to
    the clients requirements
    6heating systemHot water heating,hot air heating,electric heatingchoose according to
    the clients requirements
    7ventilation systemSide windows and cooling fanschoose according to
    the clients requirements
    8Drip irrigation systemIt can be customized according the greenhouse length and widthchoose according to
    the clients requirements
    9Micro-sprinkler systemIt can be customized according the greenhouse length and widthchoose according to
    the clients requirements

    Multi-span Agricultural Plastic Film Vegetable Fruit Tunnel GreenhouseMulti-span Agricultural Plastic Film Vegetable Fruit Tunnel GreenhouseMulti-span Agricultural Plastic Film Vegetable Fruit Tunnel Greenhouse
    Sichuan Aixiang Technology Co.,
    ltd is located in Chengdu city, China , we are professional in variety of greenhouse , such as PC sheet greenhouse , PE Film greenhouse , and Glass greenhouse,tunnel greenhouse and solar greenhouse etc , All our products have passed ISO9001 Quality Standard, Our Main Market is Euro countries as Spain , And America countries as canada , usa, As well as Australia ..We Look foreward to establish long-term business relationship with you .
