    Single-span Tropical UV Treated Plastic Film Greenhouse

    Ask Lasest Price
    Brand Name : Aixiang Greenhouse
    Model Number : Multi-span
    Price : USD12.9-24.8 per square meters
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 20000acres per month
    Delivery Time : 20-25 work days
    • Product Details
    • Company Profile

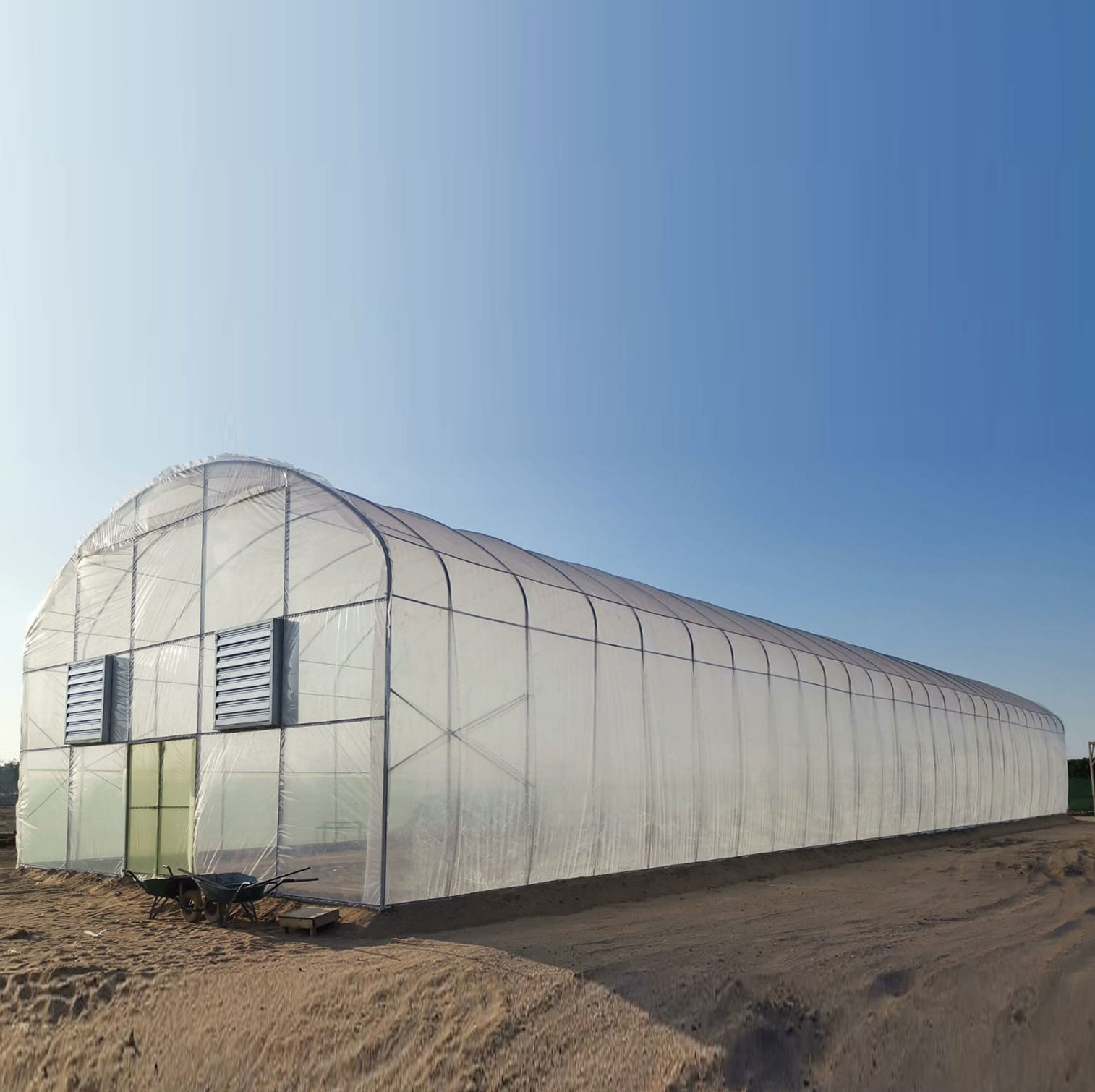

    Single-span Tropical UV Treated Plastic Film Greenhouse

    Single-span Tropical UV Treated Plastic Film Greenhouse For Sale

    White plastic film has obvious thermal insulation effect, and hot air can be absorbed and discharged over a large area. Because white materials can insulate well and heat is easy to dissipate, the environment should be kept at a low temperature. During construction operations, there will be no large temperature difference between morning and evening. In addition, white plastic film can also prevent damage to the white film by fallen objects, which plays a good protective role. The greenhouse adopts a thickened plastic film design to achieve the purpose of small heat conduction, reduced damage, and rapid climate change (large temperature difference between morning and evening reduces warming, and small temperature difference between morning and evening increases warming and precipitation). According to relevant data, greenhouses use plastic film for thermal insulation, some of which have a target of 80% shading, a few have 60% shading, and can reach about 80% shading, reducing direct sunlight and protecting from insect pests. The plastic film insulation layer should meet the operating conditions and be able to withstand its deformation within a reasonable range.


    1. Light structure, impact resistance, good load performance, excellent thermal insulation performance, durable and beautiful.

    2. PC board saves more than 40% energy than other covering materials.

    1. Using all-steel frame keel as bracket, the service life is long, up to more than 15 years;

    2. Strong wind and snow load resistance;

    3. Welded frame, easy installation, economical and durable;

    4. Multi-span design, large indoor space, high land utilization rate, suitable for large-scale planting and mechanized operation.


    Frame structure:

    (1)Hot dip galvanized steel Frame

    (2) Main post: 150*150mm-100*100mm
    (3) Auxiliary post : 120*60mm-100*50mm
    (4) Thickness: 1-2.5mm
    (5) Truss: 50*50*2.5mm
    (6) Zinc coating: average 210g/㎡
    (7) Gutter: thickness 2.0-2.75mm, zinc coating 275g/㎡
    Covering
    (1) PO/PEP/HDPE plastic film single layer film covering / double layers films one layer thickness: 120μm-200μm
    (2) Polycarbonate: double/three layers
    (3) Tempered glass
    Single layer: 4mm/5mm
    Double layer 5+6+5 mm

    Can be customized according to customer requirements
    Film multi-span greenhouse Parameters:
    (1) Wind load: 0.55KN/㎡
    (2) Snow load: 0.45KN/㎡
    (3) Maximum rainfall: 140mm/h
    (4) Planting bearing: 0.2KN /㎡
    No.ItemsDescriptionIncluding Or Not
    1Steel StructureHot-galvanized steel pipeYes
    2Greenhouse filmThere's a lot of thickness to choose from.choose according to
    the clients requirements
    3Insect netHigh quality polyrthylene as raw materialchoose according to
    the clients requirements
    4Sun-shading netSummer shade,block rain,moisture,cooling,winter spring heat preservationchoose according to
    the clients requirements
    5cooling systemIt consists of cooling fans and cooling padchoose according to
    the clients requirements
    6heating systemHot water heating,hot air heating,electric heatingchoose according to
    the clients requirements
    7ventilation systemSide windows and cooling fanschoose according to
    the clients requirements
    8Drip irrigation systemIt can be customized according the greenhouse length and widthchoose according to
    the clients requirements
    9Micro-sprinkler systemIt can be customized according the greenhouse length and widthchoose according to
    the clients requirements

    Single-span Tropical UV Treated Plastic Film GreenhouseSingle-span Tropical UV Treated Plastic Film GreenhouseSingle-span Tropical UV Treated Plastic Film GreenhouseSingle-span Tropical UV Treated Plastic Film Greenhouse
    Sichuan Aixiang Technology Co.,
    ltd is located in Chengdu city, China , we are professional in variety of greenhouse , such as PC sheet greenhouse , PE Film greenhouse , and Glass greenhouse,tunnel greenhouse and solar greenhouse etc , All our products have passed ISO9001 Quality Standard, Our Main Market is Euro countries as Spain , And America countries as canada , usa, As well as Australia ..We Look foreward to establish long-term business relationship with you .
