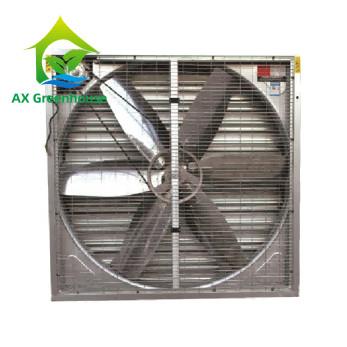

1380*1380*400mm Drop Hammer Exhaust Fan Hot Dip Galvanized Sheet
Greenhouse Cooling System
1. Description of greenhouse cooling system
The negative pressure fan uses the cooling principle of air
convection and negative pressure ventilation. It is a kind of
natural inhalation of fresh air from the opposite door or window of
the installation site, and quickly forcibly discharges the hot
indoor air to the outside. The machine that can be improved, the
cooling and ventilation effect can reach 90%-97%.
Ventilation and cooling: Due to the heat sources such as buildings,
machinery and equipment, and the human body, the temperature of the
places requiring ventilation is higher than that of the outdoors.
The negative pressure fan can quickly discharge the indoor hot air,
so that the room temperature is equal to the outside temperature,
and the temperature in the workshop will not rise.
The air flow takes away the body heat, and the air flow accelerates
the evaporation of sweat and absorbs the body heat, so that the
body feels cool, as cool as the natural wind.
The negative pressure fan only has the function of ventilation and
cooling, and has no cooling function. Coolness is the feeling of
the human body. It is ignorant to say how much temperature the
negative pressure fan can reduce.
Used in conjunction with the water curtain, the temperature in the
workshop can be controlled within 28 degrees Celsius in the hottest
time of summer. However, the coolness of the human body is
comparable to that of an air conditioner. People who face the water
curtain for a long time will feel cold and can't stand it.
2. Details
1. Frame: frames are made of hot dip galvanized sheet, top frame
thickness 1.0mm, others’ thickness 0.8mm. Galvanizing layer 180 g
/square meters.
2. Blade: 6 pieces, material 430/304 stainless steel.
3. Impeller: casting aluminum alloy impeller.
4. Motor bearing, cast iron.
2. Characteristics
Model | Blade Diameter(mm) | Blades Rotational Speed(RPM) | Air Flow(m^3/h) | Total Pressure(Pa) | Noise(DB) | Imput power | SIZE(MM) |
AX-1000 | 900(36") | 610 | 23000 | 70 | 70 | 550 | 1000*1000*400 |
AX-1100 | 1000(39") | 600 | 32500 | 70 | 70 | 750 | 1100*1100*400 |
AX-1220 | 1100(43") | 460 | 38000 | 73 | 73 | 1100 | 1220*1220*400 |
AX-1380 | 1250(50") | 439 | 44000 | 60 | 60 | 1100 | 1380*1380*400 |
3. Company Profile
Sichuan Aixiang Technology Co., ltd is located in Chengdu. We are
major in the greenhouse materials manufacturing, sales, and
technical service. And we are engaging in the advanced greenhouse
projects and designing. We are also a professional greenhouse
supplier of providing all kind of systems and their material. The
most importance is that we have rich experience of designing and
installing of blackout greenhouse, glass greenhouse, PC-sheet
greenhouse, plastic-film greenhouse, tunnel greenhouse and solar
greenhouse etc. More and more companies have built up cooperation
with our company based on the advantage of the quality and price of
our products.
4. FAQ
1. who are we?
We are based in Sichuan, China, start from 2011,sell to North
America(37.43%),Eastern Europe(2.57%),Southeast
Asia(5.34%),Africa(10.81%). There are total about 11-50 people in
our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Light Deprivation Greenhouse,PC Board Greenhouse,Glass
Greenhouse,Tunnel Greenhouse,Rolling Tables
4. why should you buy from us not from other suppliers?
1.2 factories 2.One stop solution 3.Professional exporting team
4.24-hours online 5.More than 15 years experience 6.Installation
Plan 7.Site Guidance Installation
5. what services can we provide?
Accepted Delivery Terms:
FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express
Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western
Union,Cash;
Language Spoken:English,Chinese
5.Pictures
